Heavy Construction Equipment Rental
Bull Dozers
Mini Dozer with Six Way Blade
KOMATSU D21
Model Features Include:
A single joystick on the left controls all speed and directional changes including:
- 1st to 2nd
- Forward and reverse
- Right and left steering
A single joystick on the right controls all blade functions including:
- Lifting/Digging
- Angling
- Tilting
- This left and right joystick system offers unparalleled control for shorter cycle times. Easy-to-see instrument panel
- Ergonomically arranged meters and lamps make it easier to check the machine condition. In addition, fuel meter and dust indicator lamp installed on the panel for easy servicing.
- Walk-through operator's compartment
- The operator's compartment has a complete walk-through design, making for easy getting on and off.
- Efficient HYDROSHIFT transmission
- The D21-8 is equipped with Komatsu's unique HYDROSHIFT transmission, assuring smooth gear shifts, powerful traction and low fuel consumption. It consists of a damper and planetary gear packs. The HYDROSHIFT transmission makes two previously incompatible factors compatible: It efficiently converts engine power to traction with minimal power loss through a damper and it offers smooth, easy shifting through a powershift transmission. Unlike ordinary powershift transmissions with torque converters, traction does not decrease, even when the engine is running at partial throttle.
- Long track
- The long track and well-positioned center of gravity give good machine balance and make grading operations and operations on slopes easy. In addition, the machine can travel over soft ground easily, and it can escape from muddy areas without problem.
- Simplified maintenance
- Spin-on type filters are used throughout the machine, making it easy to replace filter elements. Air cleaner with automatic evacuator extends cleaning interval of the air cleaner.
- Automatic de-airation system with electric feed pump
- Ejects air in the fuel system, simply turning on the ignition key when restarting the engine.
- Single-lever steering/speed/ directional change
- All the directional changes are carried out with single lever, ensuring smooth turn and superior productivity.
- Fuel-efficient 4D94LE-2 engine
- The Komatsu 4D94LE-2 features a direct-injection fuel system. Intake air is swirled into the combustion chamber where it is mixed with injected, atomized fuel, providing optimum combustion. This fuel system not only contributes to greater power and fuel savings, but also ensures reduced noise and cleaner exhaust. A cushion mounted engine reduces noise and vibration.
HYDROSTATIC TRANSMISSION
- Dual-path, hydrostatic transmission provides infi nite speed changes up to 8,5 km/h. The variable capacity travel motors allow the operator to select the optimum speed to match specifi c jobs. Travel control lock lever and neutral switch.
SPECIFICATIONS
Model .......................................................... Komatsu SAA4D95LE-5 Common rail direct injection, water-cooled, emissionised, turbocharged, after-cooled diesel
Komatsu D37EX
Engine power - at rated engine speed......................................... 2.200 rpm
ISO 14396................................67,7 kW/90,8 HP
ISO 9249 (net engine power) .........................66,0 kW/88,5 HP
No. of cylinders ..........................................4
Bore × stroke...............................95 × 115 mm
Displacement....................................3,26 ltr
Governor ..................................All-speed, electronic Fan
Drive type............................................Hydraulic Lubrication
System Method.............................Gear pump, force lubrication
Filter....................................................Full flow
EXCAVATORS

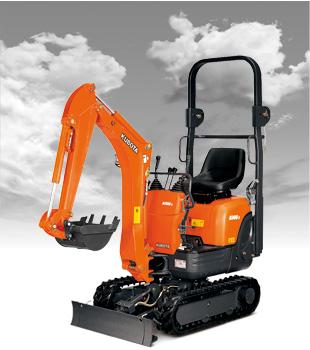

KUBOTA K008-3
- Clean-running Kubota Engine (Tier IV)
- Variable-width Undercarriage, Fits Through Doorways
- Two Speed Travel
- Foldable ROPS Frame
- 12" bucket
The Kubota K008 mini-excavator is particularly well suited for projects where access is tight or the work area is limited. It's optimally sized for the landscaper, contractor or pro DIYer with big tasks in small working area. With it's robust 2200 lbs of breakout force, max reach of 9'5 ft, digging depth of 5'8 ft and dump height of 6'8, the K008 is ready to tackle whatever you can throw at it.
KUBOTA KX018-04
- Rubber tracks
- 4 Hydraulic pump design
- Standard front dozer blade
- 360 Degree full rotation
This Kubota mini excavator has a D902 E-TVCS Tier 4 Diesel Engine 17 hp. Digging depth 7' 9". Canopy . Operating weight 3748Lbs.Tracks can be maximum of 4'4" and retracted to 3'3" to make passing through narrow areas possible.
KOMATSU PC30 MR-5
- High performance and low fuel consumption.
- Minimum swing radius to fit in confined spaces.
- Maximum digging depth 9'1"
- Overall with 5'1"
- Proportional pilot controlled joystick, provide fine control and smooth operation.
This mini excavator's fuel tank can hold up to 11 gallons , and the operational weight of this machine is 6,836 pounds. The operational weight includes the total weight of excavator plus a full tank of gas and average weight of a person. Auto idle shutdown system helps reduce nonproductive engine idle time and lower fuel consumption.
KOMATSU PC35 MR-3
Performance and Versatility
- Standard auxiliary hydraulics
- Standard thumb mounting bracket
- Three track options: rubber, steel, roadliner
- Automatic two-speed travel
- ISO/SAE pattern change valve
- Optional Power Angle blade
Operator Comfort
- Large operator platform
- Adjustable suspension seat with retractable seat belt
- Pilot proportional joystick controls
- Easy entry and egress
- Low noise
Service and Maintenance
- Wide opening engine hood and side covers
- Side-by-side radiator and oil cooler are easily inspected
- Grease points for work equipment are on the same side of the boom and arm
- Tilt-forward operator's station provides full access to engine and hydraulic components
- Hydraulic hoses are alpha-numerically marked or color coded making them easy to identify
KOMATSU PC45 MR-3
Performance and Versatility
- Standard auxiliary hydraulics
- Standard thumb mounting bracket
- Three track options: rubber, steel, roadliner
- Automatic two-speed travel
- ISO/SAE pattern change valve
- Optional Power Angle blade
Operator Comfort
- Large operator platform
- Adjustable suspension seat with retractable seat belt
- Pilot proportional joystick controls
- Easy entry and egress
- Low noise
Service and Maintenance
- Wide opening engine hood and side covers
- Side-by-side radiator and oil cooler are easily inspected
- Grease points for work equipment are on the same side of the boom and arm
- Tilt-forward operator's station provides full access to engine and hydraulic components
- Hydraulic hoses are alpha-numerically marked or color coded making them easy to identify
KOMATSU PC55 MR-3
Model Features Include:
Tight Tail Swing The operator can focus on the work in front and worry less about rear swing impact in confined areas with 80 mm 3.2" overhand on the rear.
- Large Operator's Space The operator can operate the machine comfortably due to suspension seat with adjustable seat back. On canopy models, the operator can enter and exit easily from both sides due to increased foot space and two-post ROPS canopy.
- Two-Post ROPS/FOPS Canopy/Cab Each canopy/cab meets safety regulations for ROPS/FOPS guard; Unsurpassed operator visibility
- Superior Digging Force Exceptional productivity combined with outstanding stability and superb fine control with CLSS hydraulic system.
- X-Track Frame Soil does not accumulate on the track frame due to its rounded design and wide openings. The x-frame also provides greater strength and rigidity.
KUBOTA U55R5
- U Series excavators offer performance,durability,convenience,and comfort..
- Two-pattern selection system lets operator choose ISO or SAE.
- Zero and tight tail swing offer excellent balance , stability , and better visibility in confined areas.
- Unique hydraulic system and large-capacity variable displacement pumps deliver exceptional boom, arm, and bucket movements in the industries.
Productivity Features
- Tight tail swing
- High mobility
- Mode selection
- Large Comfortable Cab
- Large TFT LCD Monitor
- Easy Maintenance
KOMATSU PC88 MR-10
Model Features Include:Ecology and Economy Features
- Low emission engine A powerful, turbocharged and air-to-air aftercooled Komatsu SAA4D95LE-5 provides 49 kW 65 HP. This engine is EPA Interim Tier 4 and EU Stage 3A emissions certifiedwithout sacrificing power or machine productivity
- Low operation noise The dynamic noise is reduced providing low noise operation.
Productivity Features
- Tight tail swing Excellent operation in tight tail swing radius design; Tail swing radius: 1335 mm 4'5"
- High mobilityLarge drawbar pull and swing force are evident when operating on a slope or other rough terrain. Max. drawbar pull: 66.9 kN 6820 kgf 15,050 lb ; The machine travel speed changes auto matically to Hi or Lo at optimal points according to the travel load
- Mode selection Economy mode improves fuel consumption.; Attachment mode for optimum engine rpm, hydraulic flow, 2way; Eco-gauge for energy-saving operations ; Extended idling caution for fuel conservation
- Safety Features Cab dedicated to hydraulic excavator for protecting the operator in the event of a roll over accident.; Safety enhancement with large side-view and rear view mirrors.
- Large Comfortable Cab Low noise design cab ; Sliding convex door facilitates easy entrance in confined areas. ; Large cab improves working space.
- Large TFT LCD Monitor Easy-to-see and use 7" large multi-function color monitor ; Can be displayed in 12 languages for global support.
- Easy Maintenance Side-by-side cooling function enables only the cooling unit to be attached and detached ; Easy access to engine oil filter, engine main fuel filter and fuel drain valve ; Equipped with the fuel pre-filter (with water separator) ; Equipped with the Equipment Management Monitoring System (EMMS) monitoring system.
Productivity Features
- High Stability
- High mobility
- Mode selection
- Upper Structure Features
- Slip resistant surfaces for improving foot traction
- Rear view camera
- Metal and rubber tracks availiable

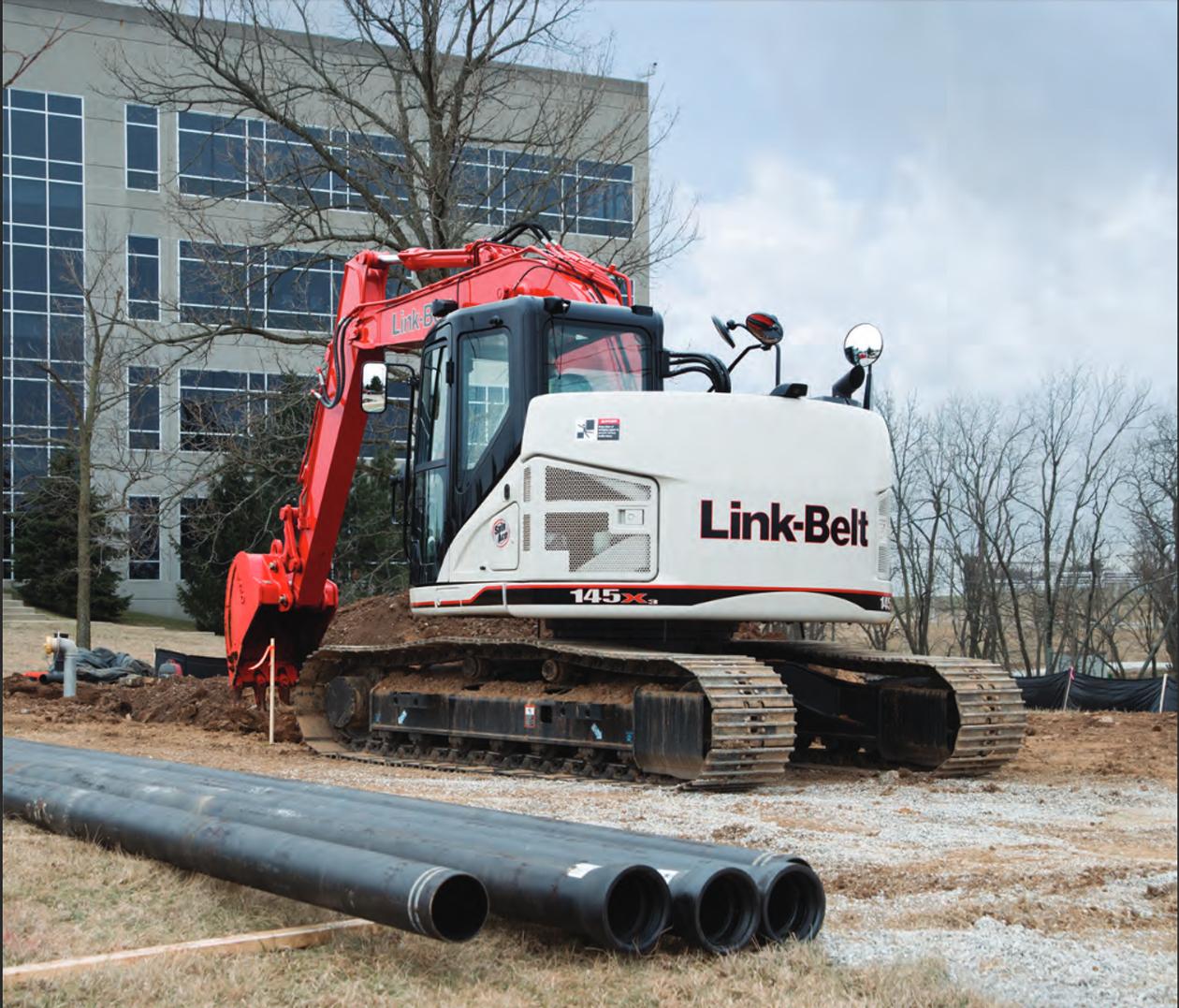

LINKBELT 145X3
- Fully-adjustable KAB seat in the 145 X3 and 235 X3, forward/backward, up/down
- Pre-wired for auxiliary hydraulics
Features
- 8% larger than X2 series cab
- High mobility
- ROPS and FOPS Level 1 certified
- 8% stronger climate control system with 8 vents
- Ergonomic joysticks
- Rear view camera
Operating weight 38,720-43,115 lbs 42"bucket power , control and more lift capacity with steel tracks.
A powerful komatsu SAA4D107E-3 engine provides a net output of 90kw (121hp) This engine is EPA tier 4 final emissions certified.
Six working modes are designed to match engine speed , pump output and system pressure to a wide range of application.
KOMATSU PC200 LC-8
Demolition-dedicated machine that has been nurtured by a long track record The machine best suited to hard demolition jobsites.
Equipped with additional hydraulic piping for attachments as a standard specification, PC200 with demolition specifications can be installed with attachments like a hydraulic breaker and crusher. Its work equipment and base machine have been strengthened to ensure higher durability. It demonstrates excellent operating performance even under severe working conditions.
KOMATSU PC228 USLC-3
By reducing tail swing, the PC228US-3 can work in areas where conventional profile excavators would pose a safety risk.
Perfect for work on roadways, bridge work, urban areas, or anywhere space is limited, the PC228US-3 provides you with performance and productivity you expect from Komatsu equipment. Working in congested or confined areas can be a challenge. Komatsu's PC228US-3 Series Hydraulic Excavators have a short tail swing profile, designed specifically for work in confined areas.
Precision, power, stability, you get it all in the PC290LC-10. With six working modes, Power Max, Tier 4 interim engine technology can save up to 10% on your fuel bill compared to the previous model and you have an excavator that will tackle any job you can throw at it.
Horsepower 257 hp @ 1,950 rpm
Operating weight 80,547 lbs
Overall width 11' 3"
A closed center load sensing hydraulic system ensures smooth operation ,quick cycle times, and great multi- function while lowering fuel consumption.
